Precision Active Oscilloscope

Precision Active Oscilloscope
Precision Active Oscilloscope
Product Code : 04
Brand Name : CircuitMaster 4000M
Product Description

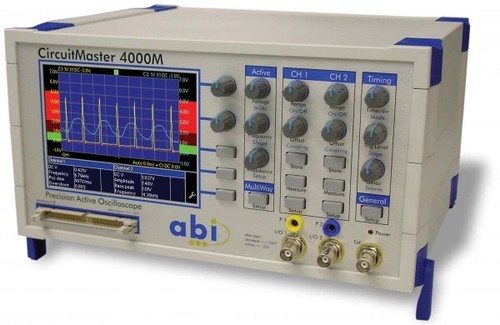

Circuit Master 4000M

The Circuit Master 4000M Precision Active Oscilloscope is unlike any other oscilloscope as it provides some innovative test and measurement functions that enable engineers and technicians to perform several new types of circuit analysis. It is designed for safe probing of closely spaced components by adding precision DC measurement, signal storage and analysis functions to a traditional oscilloscope design. Indeed, a built in accurate voltmeter (24 bit) removes the need for multiple instruments, thus making the Circuit Master a complete test and measurement station.

In addition, the Active mode allows signals (AC and DC) to be injected into the board when required, allowing circuit conditions such as drive strength and source impedance to be checked - which is not possible with traditional oscilloscopes. In AC Active mode, the unit behaves much like a function generator. The Circuit Master even has a built-in Logic View 4 channel analyser for logic signal display along with the 2 analogue inputs. Firm Flex and VI Curve functions provide impedance signature analysis on powered and un-powered boards.



Features

  • 100MHz digital storage oscilloscope
  • 0.1% 24 bit digital DC voltmeter
  • Active mode - DC and AC function generator
  • FirmFlex node impedance analyser
  • Multi-range 2 channel VI tester with pulse outputs
  • 2 analogue channels + external trigger
  • Multi way 40 channel signal multiplexer
  • Automatic and cursor waveform measurements
  • Wave Stack signal acquisition memory
  • Stored and live tolerance mask waveform comparison
  • Logic View 4 channel variable threshold logic analyser
  • USB interface for updates, settings and waveform storage



Specifications

  • 2x Oscilloscope Probes X10/X1
  • 2x Red/Black 4mm probe set
  • 2x BNC to 4mm adapter
  • Multi Way Cable with Logic View clips
  • USB cable
  • Foots witch
  • DIL Test Clips: 40 way (0.6") and 16 way (0.3")
  • Circuit Link Software on CD-ROM
