Evaluation Board

Evaluation Board
Evaluation Board
Product Code : 11
Brand Name : GSAS MICRO SYSTEM PVT LTD
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal, Others
  • Main Domestic Market
  • South India
Product Description

The concern, we have gained in this international market is due to our exceptional quality Evaluation Board. This board consists of microprocessor and is installed in various electrical devices. Further, this board is manufactured at our well-developed production unit using supreme quality raw materials and advanced technology under the stern guidance of our highly knowledgeable professionals. Besides, this Evaluation Board can be purchased by our clients in numerous specifications as per their precise needs and at affordable prices.

Features:

  • Easy to install

  • Compact size

  • Durability

  • Light weight

Other information:

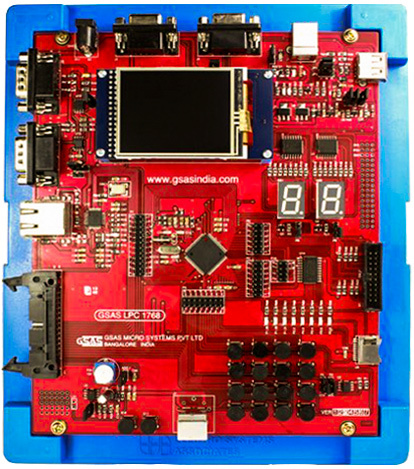

GSAS LPC 1768 is an evaluation board for the NXP LPC 17xx micro-controller family. GSAS LPC 1768 allows the user to
evaluate the capabilities of the NXP LPC 17xx and create real working environment with KEIL development tools. The
LPC 1768 is supplied with the NXP LPC 1768, the super set of several other device variants of the NXP LPC 17xx
controller.

This ARM board is powered by USB port. A serial connection is provided for In-System-Programming and it provides
Serial (RS-232), CAN and USB interfaces as well as eight LEDs, analog input (via potentiometer) and three push buttons.

On-board JTAG connector is provided for connecting JTAG based debuggers like KEIL ULINK, SEGGER J-LINK etc.,
On board power supply connector and 26 pin FRC connector are available for interfacing the GSAS LPC 1768 board to
some of the GSAS Interface Modules such as Seven Segment Display, Elevator, Traffic Lights, Dual DAC, Txdr ADC
etc., This would enable to develop and debug code for these GSAS interface modules.

This trainer kit has an extensive list of features,

  • Powered by PC's USB port

  • Communicates with host PC through its on-board serial port - Rs 232C/USB Port

  • On-chip 512K bytes Flash, 64k Bytes RAM are available to user

  • Provision for USB Plug in device interface

  • Two on chip UART ports are terminated on 9 pin D type (Female) connectors J1 and J2

  • Provision for CAN interface (CAN0 and CAN1 are terminated on two 9 Pin D type (male) connectors J5 and J6

  • SB interface uses the standard USB connector for the full speed USB 2.0 peripheral of LPC 1768 device

  • SD memory card connector that supports a wide range of memory cards

  • The status of the port lines can be monitored through on board 8 LED's

  • Color QVGA TFT LCD with touch screen is available for the user interface

  • On board RESET switch and INT switch

  • Provision for onboard keyboard connector and speaker

  • On-chip 2 analog voltage controllers for ADC input

  • The prototyping area provides pads for connecting ports

  • Flexible configuration using jumpers

  • On-chip I2C and SPI interfaces are available to user

  • Provision for on board Ethernet connector

  • GSAS LPC 1768 Provides two 8 digit 7 segment displays and 4-4 matrix Hex keypad

  • On Board 20 pin JTAG connector for debugging/programming various applications
