7- segment display Interface

7- segment display Interface
7- segment display Interface
Product Code : 23
Product Description

We are tirelessly striving in the industry to attain maximized customers contentment by manufacturing and supplying a technically sound array of Segment Display. These displays are the interfaces that provide a four digit 7-segment display that is achieved by the output of four cascaded shift registers. In these segments, the displayed data is serially transmitted to the connected interfaces. Widely applicable for IT industries, the series of Segment Display can be acquired at highly discounted prices.

Features:

  • Fine display control techniques
  • Excellent displaying properties
  • Ensures clear visibility

Further Details:

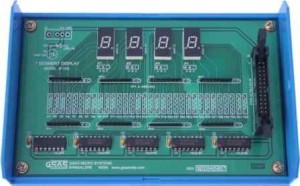

This interface provides a four digit 7-segment display driven by the output of four cascaded shift registers. Data to be displayed is transmitted serially (bit by bit) to the interface. Each bit is clocked into the shift register by providing a common clock through a port line. Thus one port line provides the data and another port line provides the clock.
This interface allows the user to study 7-segment display control techniques, code conversion methods, etc., The software exercise could include procedures for table look-up, a variety of bit manipulation operations, etc.
